Products

Enclosed
Bus Bar System

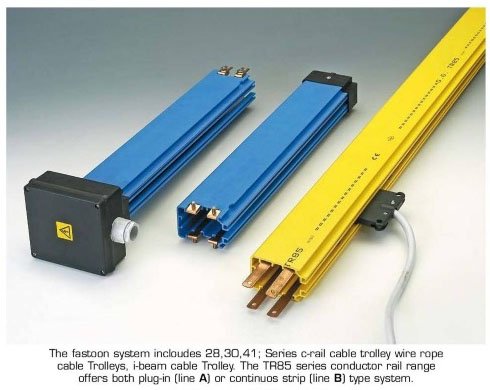

Our enclosed bus bar system offers a fully insulated, touch‑proof power conductor solution for overhead cranes, hoists, and material handling equipment in harsh environments.

The rigid PVC housing protects against dust, moisture, and accidental contact, ensuring operator safety and reliable power transmission.

Request a Quote → View Gallery

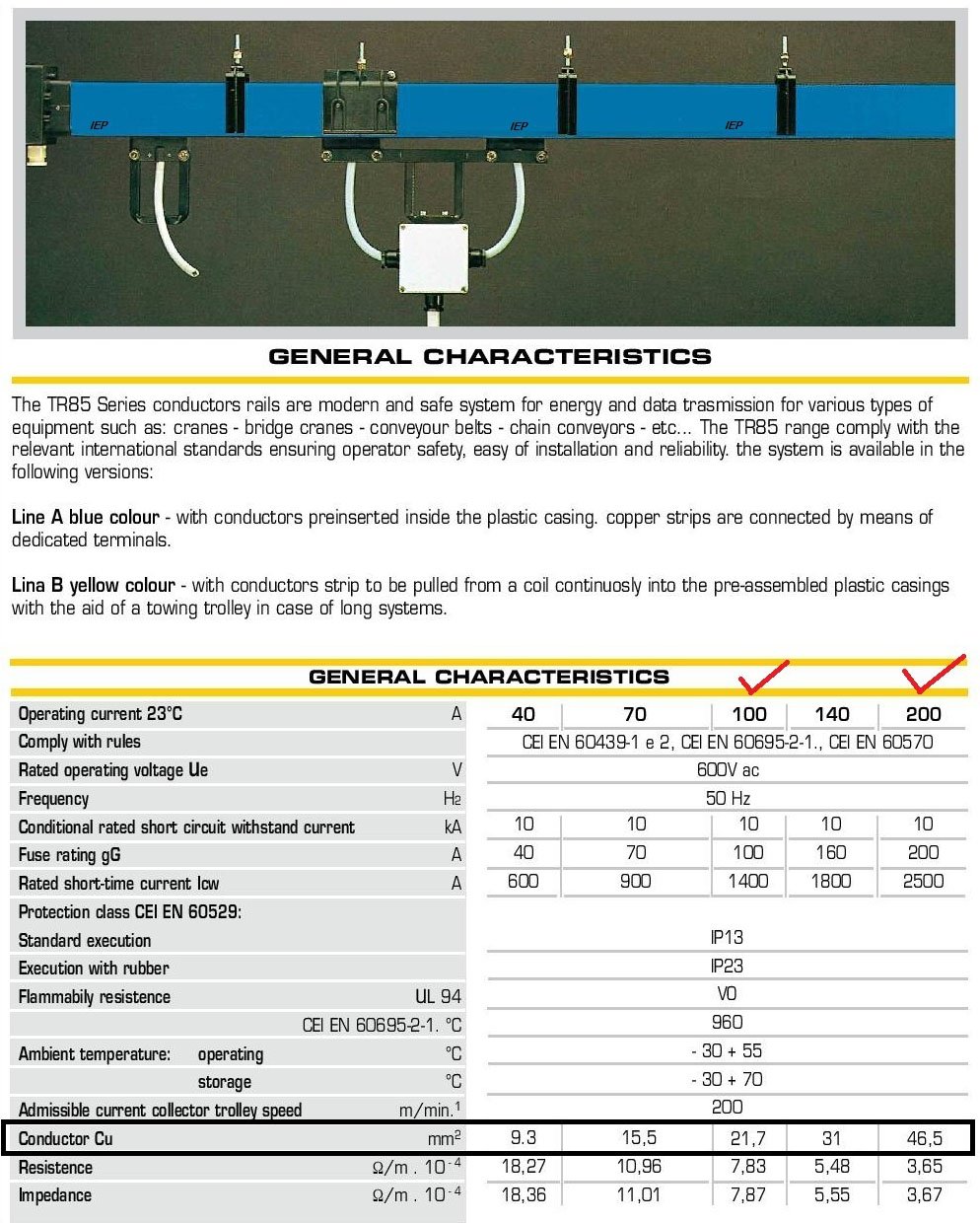

Key Specifications

80A to 1250A IP23 Rated 4.5m Length
Features

Key Features

Engineered for safety, durability, and reliable power transmission

Fully Enclosed & Touch-Proof

IP23 rated housing protects against dust, moisture, and accidental contact, ensuring maximum operator safety.

Wide Current Range

Available from 80A to 1250A, suitable for a wide range of industrial applications and power requirements.

Copper & Aluminium Options

Available in both copper and aluminium conductor options to suit your specific application and budget.

Self-Extinguishing PVC Housing

Rigid PVC housing with heat distortion point of 70°C at 260 psi, ensuring long-term durability.

Standard Length 4.5 Metres

Standardised length for easy installation and system expansion. Custom lengths available on request.

Ideal for Harsh Environments

Designed for demanding industrial environments including steel plants, shipyards, and heavy manufacturing.

Need a Custom Enclosed Bus Bar System?

Contact our engineering team for a free consultation and quote tailored to your amperage, environmental conditions, and space constraints.

Get in Touch → Download Catalogue
